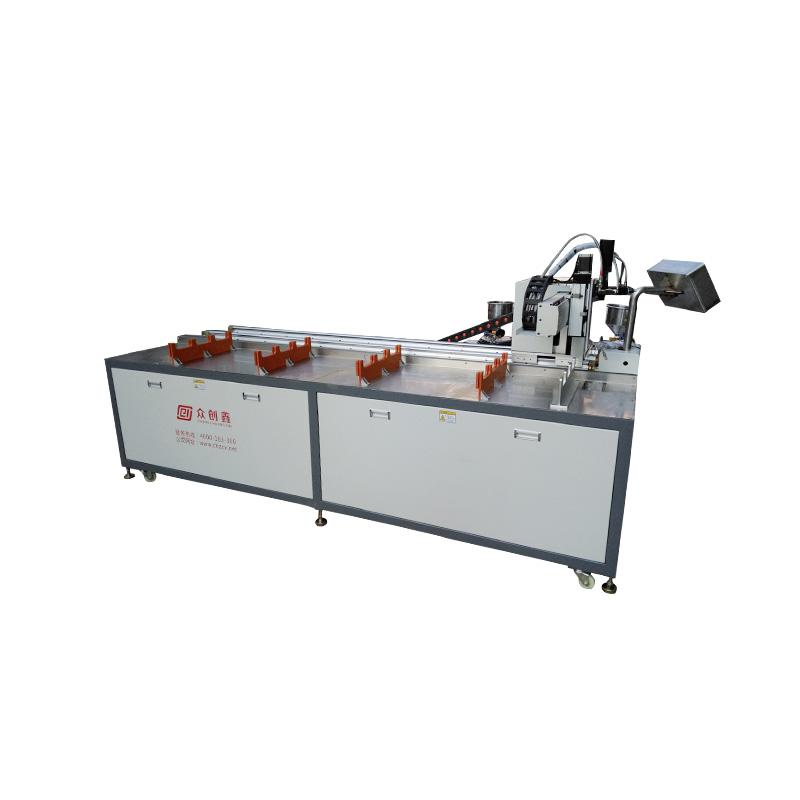

ZCX cantilever single-group part glue machine, super - size travel, high efficiency, can use various LED outdoor lighting product point glue, welcome to the factory to know.



1. Introduction of machine features:
1) the machine is equipped with touch screen, and it is easy to debug and easy to debug through the handheld programmer.Can realize single point of glue, straight line product glue, flat arc type glue.
2) glue software system: zhongchuangxin automatic research and development operation system, easy to operate, easy to learn, unique anti-stay engineering design.
3) the countertop is equipped with the fixture, the product will not shake when the glue is used, and other treatment tools can be removed.
4) the XYZ sports axis USES high precision circular rail and stepper motor to cooperate with the operation, which can effectively guarantee the high precision operation of the equipment.
5) the 2.6L can be replaced easily, and the new glue can be replaced quickly after it is used, which does not affect the production efficiency.
6) the glue valve brings back the function of absorption, which can effectively prevent the glue pulling, the fast and other characteristics of the glue, and the back suction size can be adjusted according to the glue characteristics.


2. Adjustment of Z axis and feed valve:

1) the z-axis lifting stroke is 80mm, which can be customized according to the customized trip length.
2) the Z axis can be changed to pneumatic lifting system according to customer\'s condition.
3) the glue valve reposition point has the row glue port, convenient machine after use after cleaning rubber valve.

Configuration name: specification parameters
Glue type: single group glue
Speed of filling: 10-100g/5s adjustable (the amount of gelatine is different according to the ratio of glue and characteristics)
Precision: 100g + + 5%
Operation mode: automatic and manual
Programming: teaching programming
Electronic control system: PLC+ touch screen + handle (program setting, modification, storage, etc.)
Capacity: 2.6L bucket 1
Dimensions: 2000mm* width 1030mm* height 1400mm (1 meter 2, can be 5 meters long)
Machine input power: 220V 50Hz
Machine input pressure: 0.5-0.7Mpa
Operating speed: XYZ300mm/s
Operation stroke Y axis 1200mm, X axis 320mm, z-axis 80mm (maximum can be 5000)

Application scope of zhongchuangxin cantilever single part glue machine:
It is applied to outdoor lighting products such as LED washing wall lamp, LED line lamp, LED lighting lamp, LED hard bar lamp, etc.
